Implemented isolation design between transmission and mold
NEWTOP-118DT is an efficient and intelligent paper cup jacket machine
Implemented isolation design between transmission and mold
NEWTOP-118DT is an efficient and intelligent paper cup jacket machine
Adopting an open intermittent segmentation design, gear transmission and longitudinal axis structure
This machine adopts spray lubrication and PLC control system, equipped with photoelectric fault detection and servo feeding to ensure stable and efficient operation, with a maximum speed of 100 pcs/min. Suitable for the production of 8-44OZ cup sleeves, with good insulation effect, suitable for coffee cups, corrugated cups, noodle bowls, etc
.png)
.png)
|
Model |
NEWTOP-118DT |
|
Weight |
2600kg |
|
Machine encasement dimension |
2800 x 1300 x 2250mm |
|
Rated power |
Three-phase, 380V, 5KW |
|
Compressed air |
0.6-0.8MPa, 0.4 m3 /min |
|
Max Capacity |

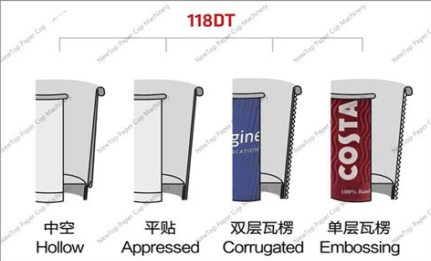

中空/平贴:150pcs/min Hollow/Appressed 双层瓦楞:100pcs/min Corrugated 单层瓦楞:80pcs/min Embossed |
|
Paper materials |
灰底白板/白卡Gray board/White board 单层瓦楞Embossed |
|
Paper thickness |
0.2825-0.4075mm |
|
Product range |

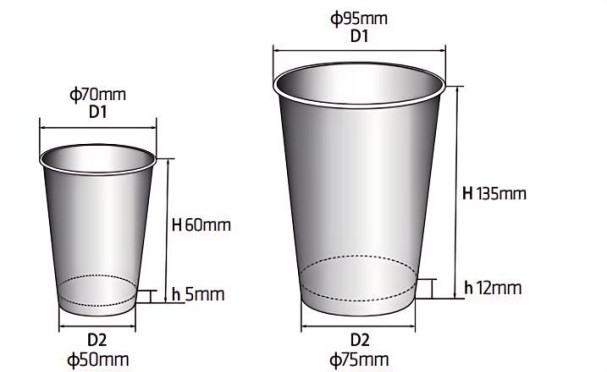

(D1)φ70-95mm (H)60-135mm (D2)φ50-75mm (h)5-12mm (sleeve height) |
| Grease Lubrication |  Hand Movement11 |
| Ultrasonic |  Ultrasonic |
| Airborne detection |  Collect table |
| Piping |  Single line pipeline |
8oz-44oz Paper Cup Size
120pcs/min Max Capacity
70pcs/min Max Capacity
60pcs/min Max Capacity
