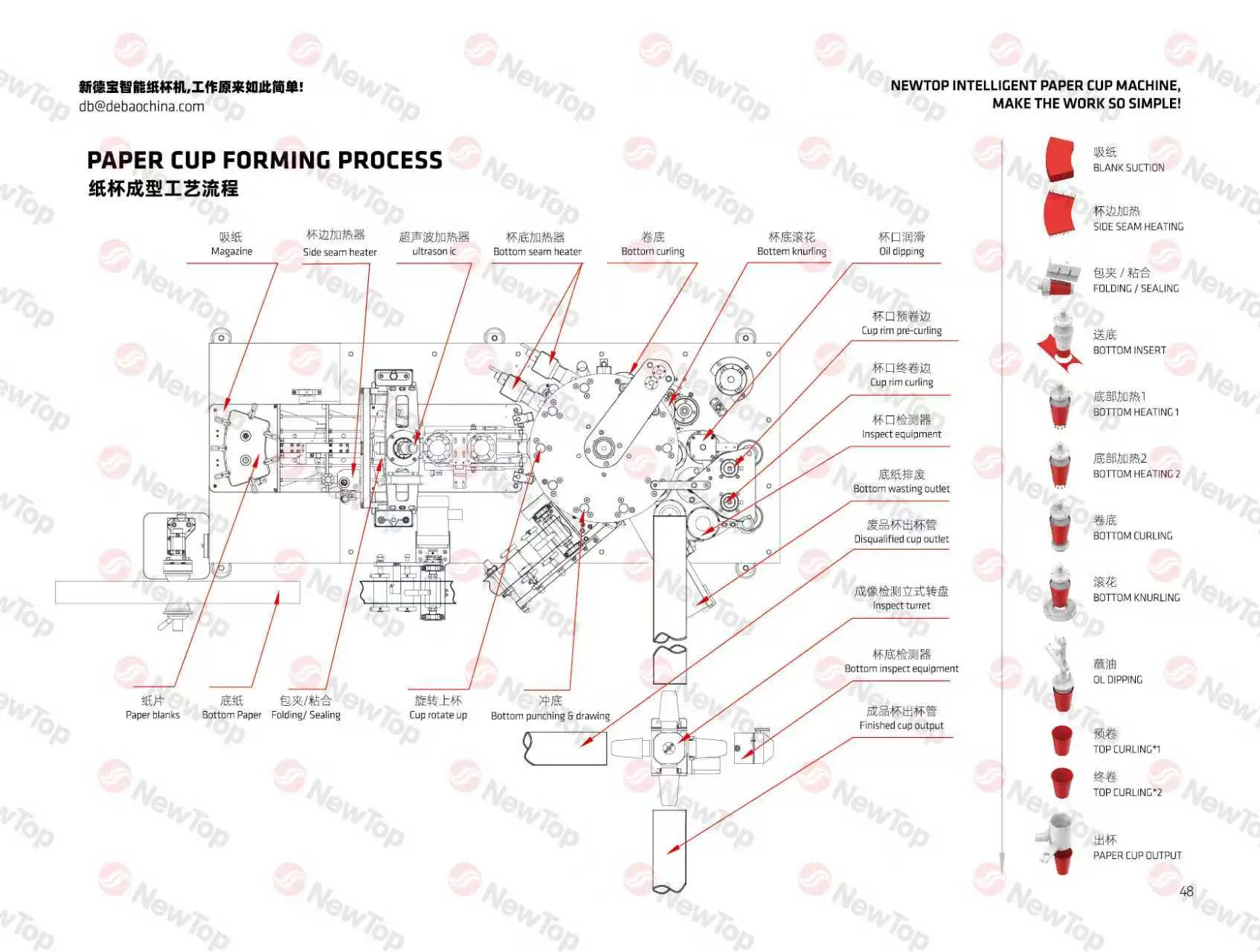

High precision control of paper cup forming process using digital control and servo motor

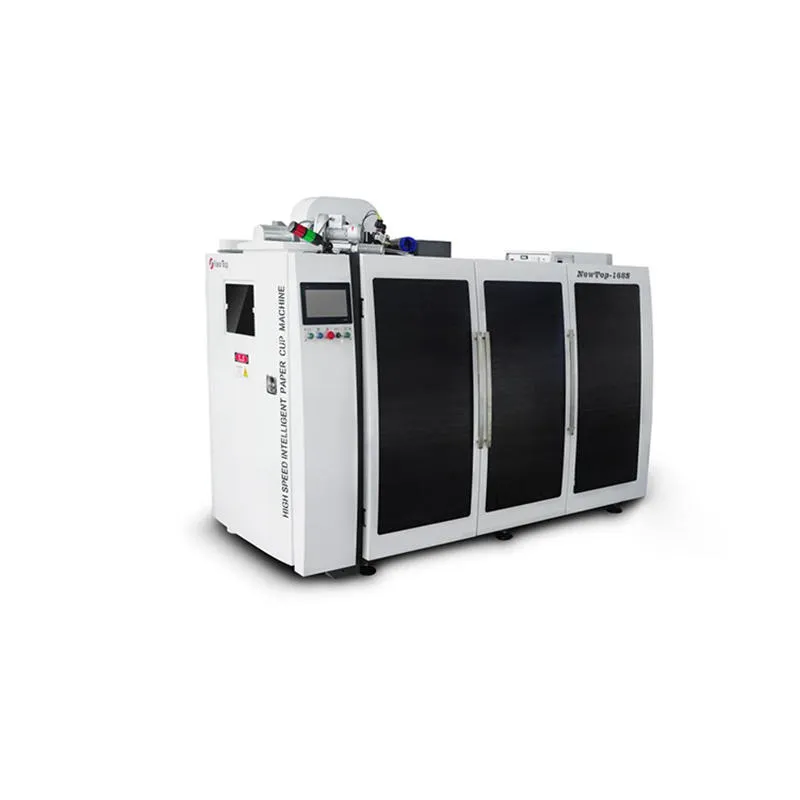

NEWTOP-168S coffee paper cup forming machine is an efficient, intelligent, and environmentally friendly paper cup forming machine
NEWTOP-168S perfectly inherits the stability and durability of its predecessor products

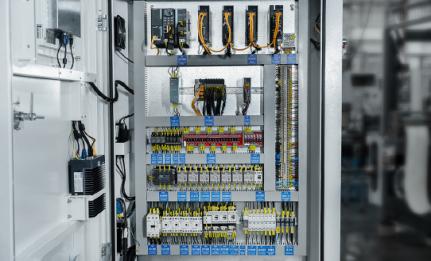

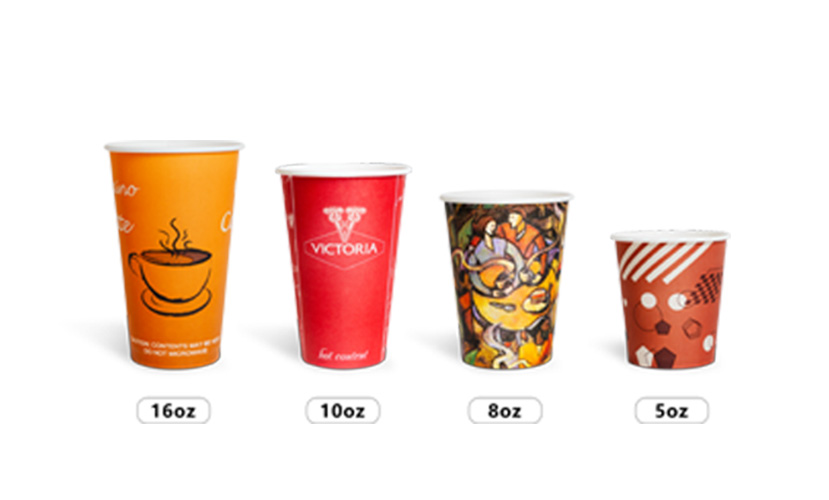

This machine is designed specifically for the production of 5-16oz paper cups, with a speed of up to 180pcs/min. Adopting servo motors and digital control to ensure fast, accurate, and stable forming of paper cups. Integrated Ethernet real-time control, distributed clock, electronic cam, and common DC bus technology.

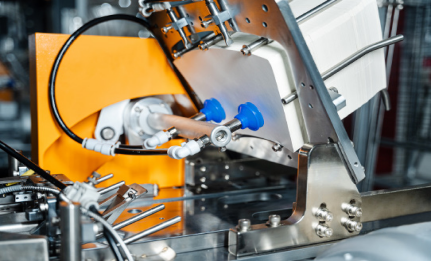

Change the paper suction method to rotary paper suction

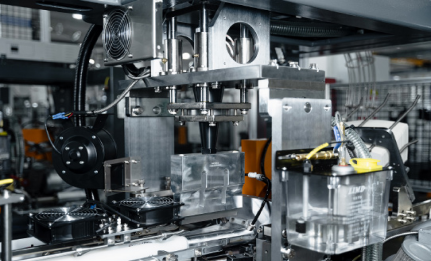

Mid seam bonding upgraded to servo bonding, with CNC adjustable pressure
Three independent fixed hot air channels

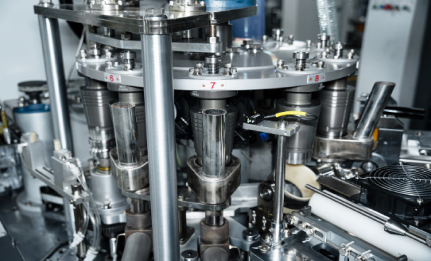

Enhanced cup bottom positioning
Preheating of rolled edges.
.png)
.png)
.png)
|
Model |
NEWTOP-168S |
|
Weight |
3400kg |
|
Machine encasement dimension |
3100x1600x2100mm |
|
Cup counting holder packing specifications |
1230x610x1900mm |
|
Rated power |
Three-phase 380V, 26KW |
|
Compressed air |
0.6-0.8MPa, 0.5m3 /min |
|
Max Capacity |
168pcs/min |
|
Paper materials |
Single PE/Double PE/PLA |
|
Paper thickness |
0.295-0.445mm |
|

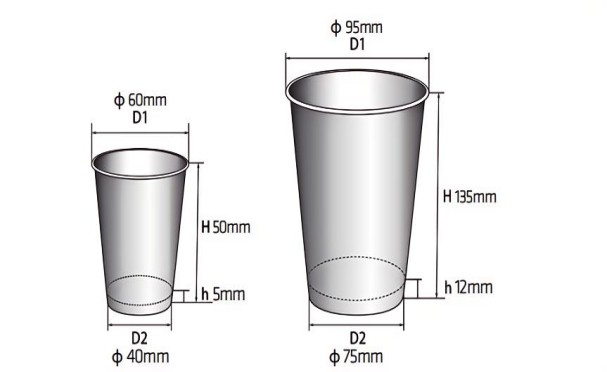

Productrange |
(D1) φ 60-95mm (H)50-135mm (D2)φ 40-75mm (h)5-12mm |
5oz-16oz Paper Cup Size
150 pcs/min Max Capacity

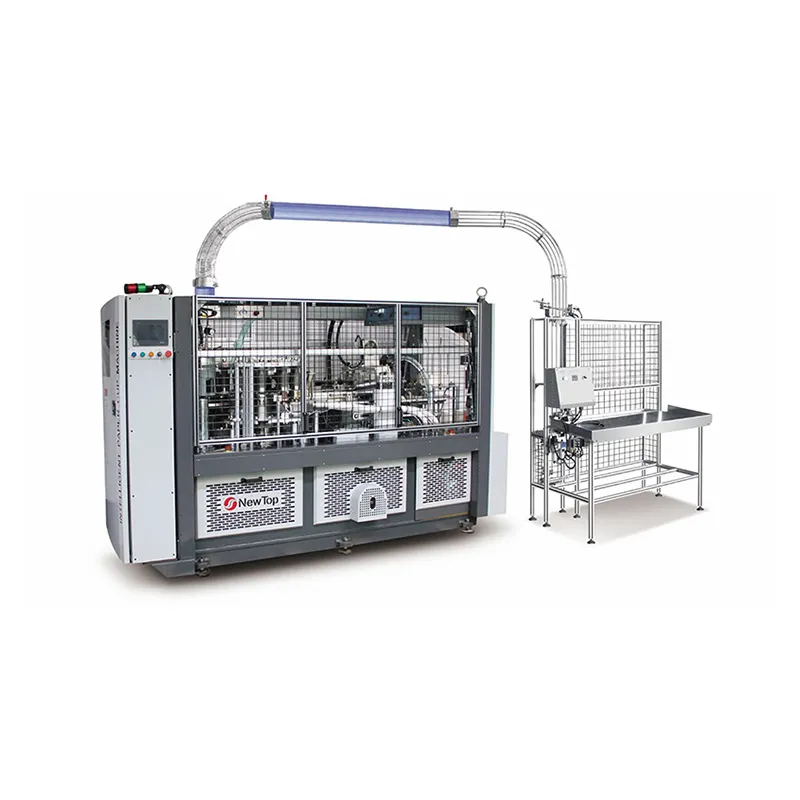

5oz-16oz Paper Cup Size
160 pcs/min Max Capacity
2.5oz-10oz Paper Cup Size
150 pcs/min Max Capacity
New Debao people pursue the concept of high quality and technology leading.
By changing the working mode with intelligent paper cup machine to make the operation more and more simple.
