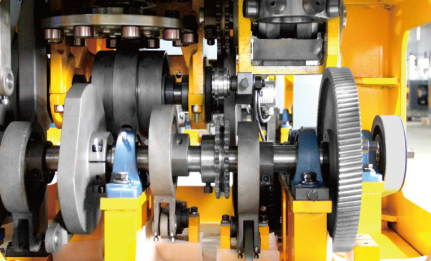

Adopting a longitudinal axis transmission structure, cylindrical indexing cam and gear transmission
NEWTOP-118S+ZY is an intelligent, convenient, and efficient paper cup forming machine
Adopting a longitudinal axis transmission structure, cylindrical indexing cam and gear transmission
NEWTOP-118S+ZY is an intelligent, convenient, and efficient paper cup forming machine
NEWTOP-118S+ZY is fully controlled by PLC
This machine adopts a desktop layout, with separate transmission and mold for easy maintenance. Integrated automatic lubrication, longitudinal axis transmission, and gear system for stable operation. PLC、 Photoelectric tracking and servo feeding control, with a production capacity of 150pcs/min, suitable for high-end customized paper cup production of 5-16oz.
.png)
.png)
.png)
|
Model |
NEWTOP-118S+ZY |
|
Weight |
3300kg |
|
Machine encasement dimension |
3100 x 1600 x 2250mm |
|
Cup counter encasement dimension |
1230 x 610 x 1900mm |
|
Rated power |
Three-phase, 380V, 26KW |
|
Compressed air |
0.6-0.8MPa, 0.5 m3 /min |
|
Max Capacity |
150pcs/min |
|
Paper materials |
Single PE / double PE / PLA |
|
Paper thickness |
0.295-0.445mm |
|

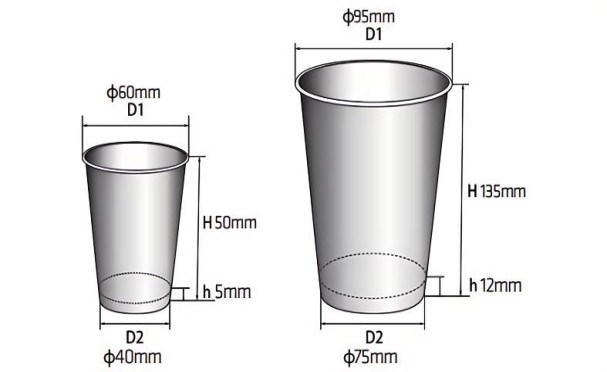

Product range |
(D1)φ60-95mm (H)50-135mm (D2)φ40-75mm (h)5-12mm |
| Grease Lubrication |  Hand Movement11 |
| Ultrasonic |  Ultrasonic |
| Hot Air Generator |  Bottom |
| Hot Air Generator |  Broadside |
| Paper Cup Lubrication |  Cup bottomlubr ication |
| Airborne detection |  Collect table |
| Piping |  Single line pipeline |
16oz-22oz Paper Cup Size
120 pcs/min Max Capacity
5oz-16oz Paper Cup Size
150 pcs/min Max Capacity
5oz-16oz Paper Cup Size
168 pcs/min Max Capacity
