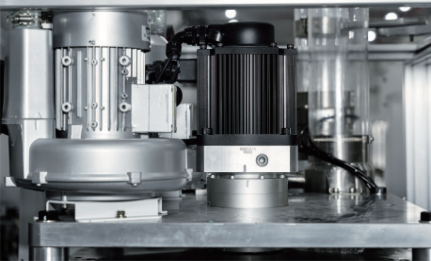

The servo drive function has the advantage of making the machine more intelligent and efficiently adjustable as a whole
NEWTOP-FB100S is an efficient, intelligent, and environmentally friendly paper cup forming machine
Adopting digital control mode

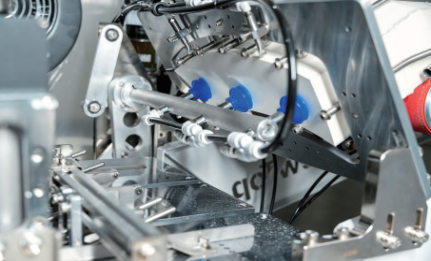

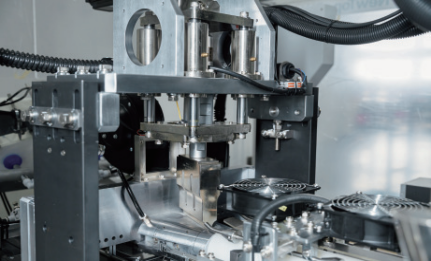

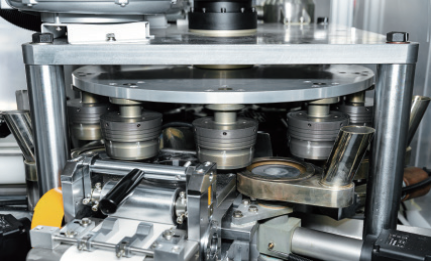

This model adopts servo motor high-precision control for paper cup forming, integrates Ethernet real-time control, distributed clock mechanism, electronic cam and other technologies to achieve efficient and stable production, suitable for 10oz-45oz paper cups, with a maximum speed of 138pcs/min.
More stable, efficient, and energy-efficient
More intelligent, digital, easier to operate, system mapping guidance, self-learning icons to adjust machine parameters
Small in size, specially designed for small cups and thin paper market universal paper cups
.png)
.png)
.png)
|
Model |
NEWTOP-FW125S |
|
Weight |
3200kg |
|
Machine encasement dimension |
2300x1900x2100mm |
|
Cup counting holder packing specifcations |
1230x610x1900mm |
|
Rated power |
Three-phase 380V, 37KW |
|
Compressed air |
0.6-0.8MPa,0.5m3 /min |
|
Max Capacity |
138pcs/min |
|
Paper materials |
Single PE/Double PE/PLA |
|
Paper thickness |
0.2825-0.445mm |
|
Productrange |

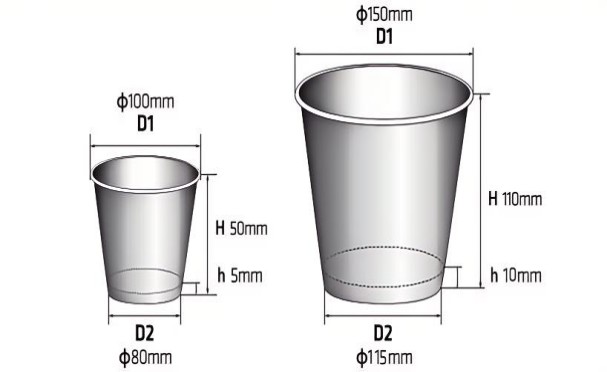

(D1) φ 100-150mm (H)50-110mm (D2)φ 80-115mm (h)5-10mm |
| Grease Lubrication |  Automatic |
| Ultrasonic |  Ultrasonic |
| Hot Air Generator |  Bottom |
| Hot Air Generator |  Broadside |
| Paper Cup Lubrication |  Cup bottomlubr ication |
12oz-45oz Paper Cup Size
120 pcs/min Max Capacity
23oz-168oz Paper Cup Size
80 pcs/min Max Capacity
25oz-90oz Paper Cup Size
120 pcs/min Max Capacity
