Implemented isolation design between transmission and mold

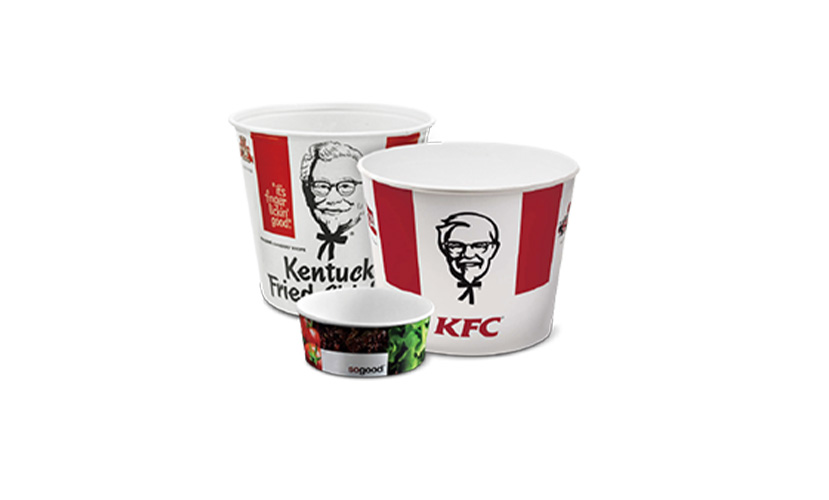

NEWTOP-5000S is a highly intelligent paper bowl forming machine suitable for producing large paper bowls
Implemented isolation design between transmission and mold
NEWTOP-5000S is a highly intelligent paper bowl forming machine suitable for producing large paper bowls

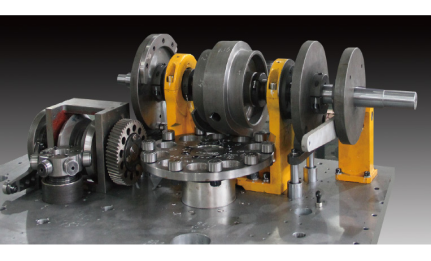

Automatic spray oil lubrication, longitudinal axis transmission and gear structure
This model adopts a tabletop fixed mold for easy cleaning and maintenance, ensuring quality and hygiene. PLC integrated photoelectric tracking and servo feeding, suitable for the production of paper bowls ranging from 23-168oz, with a speed of up to 80pcs/min, and can be used in conjunction with NEWTOP-1250WT paper cup packaging machine.
.png)
.png)
|
Model |
NEWTOP-5000S |
|
Weight |
4500kg |
|
Machine encasement dimension |
3500 x 1800 x 2250mm |
|
Cup counter encasement dimension |
1230 x 720 x 1900mm |
|
Rated power |
Three-phase, 380V, 35KW |
|
Compressed air |
0.6-0.8MPa, 0.6 m3 /min |
|
Max Capacity |
80pcs/min |
|
Paper materials |
Single PE / double PE / PLA |
|
Paper thickness |
0.3825-0.5325mm |
|

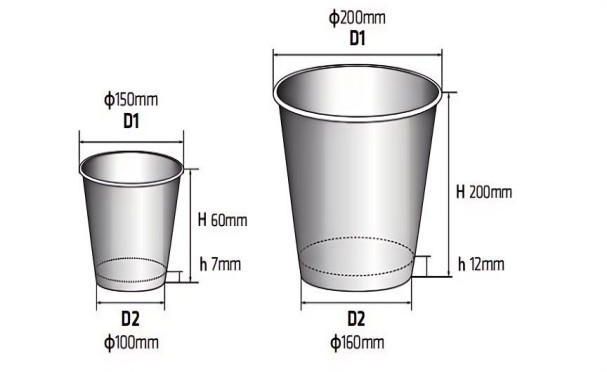

Product range |
(D1)φ150-200mm (H)60-200mm (D2)φ100-160mm (h)7-12mm |
| Grease Lubrication |  Hand Movement11 |
| Ultrasonic |  Ultrasonic |
| Hot Air Generator |  Bottom |
| Hot Air Generator |  Broadside |
| Paper Cup Lubrication |  Cup bottomlubr ication |
| Airborne detection |  Collect table |
10oz-45oz Paper Cup Size
138 pcs/min Max Capacity
25oz-90oz Paper Cup Size
120 pcs/min Max Capacity
